Custom dimensions
Dimensions are reviewed against the drawing, sample and mating components.
Custom brass component development
OEM & Custom Brass Fittings Manufacturing Capabilities
Can your part be made? Send a drawing, sample or specification so dimensions, threads, material, sealing requirements, finish and packaging can be reviewed before quotation.
Send Drawing for Review
Project review scope
What can be specified
Thread systems
GHT / NH, BSP / BSPP / BSPT, NPT, metric and custom thread requirements are reviewed before quotation.
Brass options
Material grades and market requirements are reviewed for each project.
Surface finishes
Natural brass and nickel-plated finish requirements can be specified.
Custom tooling
Tooling requirements are reviewed for non-standard part geometry.
OEM packing
Packaging and export-packing requirements are confirmed with the order specification.
Manufacturing
Real production equipment for precision components.

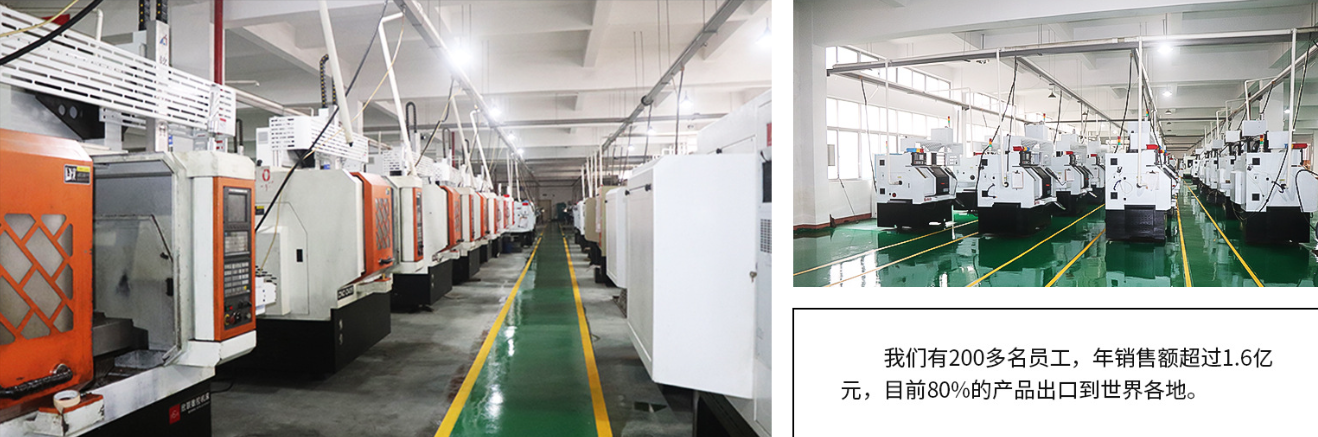

These production-floor images document CNC turning, machining and automated machine loading. Part-specific process scope is confirmed against the approved drawing, sample and technical file.
01
CNC Turning
CNC turning centers support production to the approved dimensions, thread interfaces and part specification.
02

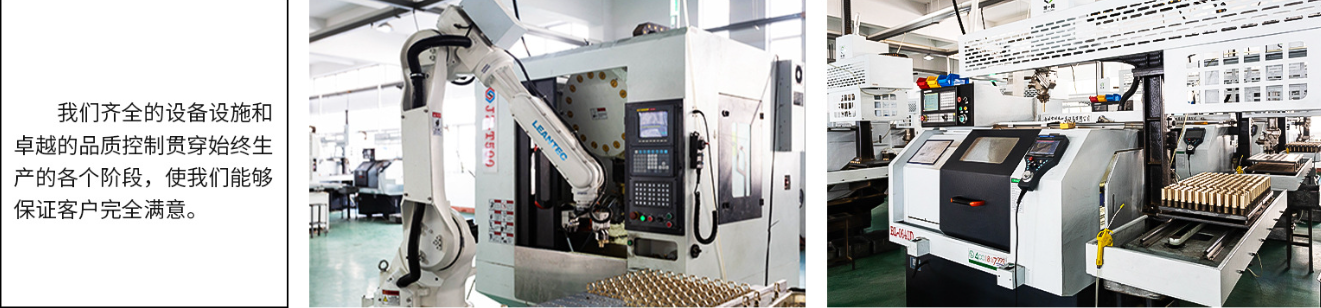

Automated Machine Loading
Robotic loading supports repeatable work handling on selected CNC production operations.
03
Machining
Machining cells support approved component geometries and batch requirements after engineering review.
Photographs supplied as production evidence. Additional processes are added only after capability confirmation and supporting documentation.
Brass materials
Confirm the grade and compliance requirement first.
Material selection must follow the approved specification and target-market requirements. A generic material name is not treated as a substitute for a confirmed grade.
Standard brass
Specify the required grade or performance requirement for confirmation before quotation.
Lead-free brass
Provide the required material grade and applicable market or compliance standard for feasibility confirmation.
Customer-specified material
Send the grade designation, drawing notes and any material-certificate requirements for review.
Thread options
Specify the complete thread interface.
A family name alone is not enough for production. The approved file should define thread form, size, pitch, tolerance, sealing method, mating part and any gauge requirement.
GHT / NH
Garden hose thread requirements; confirm nominal size, mating component and gauge requirement.
BSP / BSPP / BSPT
Confirm parallel or tapered form, nominal size, pitch, tolerance and sealing method.
NPT
Confirm nominal size, taper requirement, pitch and the mating threaded component.
Metric Threads
Specify major diameter, pitch, tolerance class, engagement length and mating component.
Custom Threads
Provide the drawing, thread profile, pitch, tolerances and inspection or gauge requirement.
Dimensions, threads and finishes
Review the interfaces that determine fit.
- Custom dimensions from drawing or approved sample
- GHT, BSP and NPT thread requirements
- Male, female, reducing and mating-thread combinations
- Natural brass and nickel-plated finish requirements
- Custom tooling review for non-standard geometry
Inspection scope
Check the approved specification, not assumptions.
Inspection points are selected for the specific part, application and approved buyer file.
01Critical dimensions
02Thread form and fit
03Sealing-related requirements
04Surface appearance
05Packaging details
06Approved specification alignment
Start with technical input
Request an Engineering ReviewSend the drawing, sample or specification.
Include dimensions, thread requirements, material or grade, quantity, finish, inspection requirements and packaging needs.
